Post by wolfman on Nov 20, 2012 12:00:54 GMT -5
Hello all, have picked up a 440 Whip with Cuyuna engine. Sled is in nice shape however the ignition switch is missing. What switch do I need, 4 terminal 3 position ? and could use a wiring diagram also. thanks for your help.
|
|
|
Post by scorp11 on Nov 30, 2012 2:18:14 GMT -5

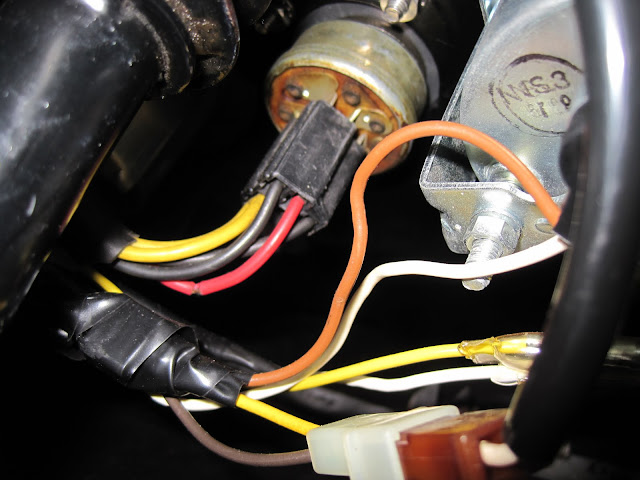

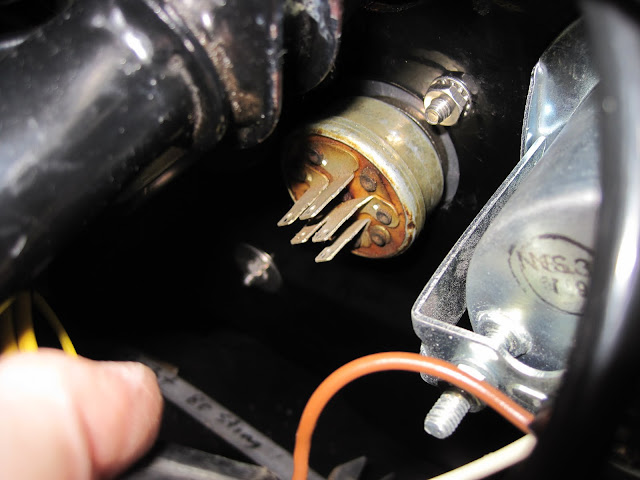

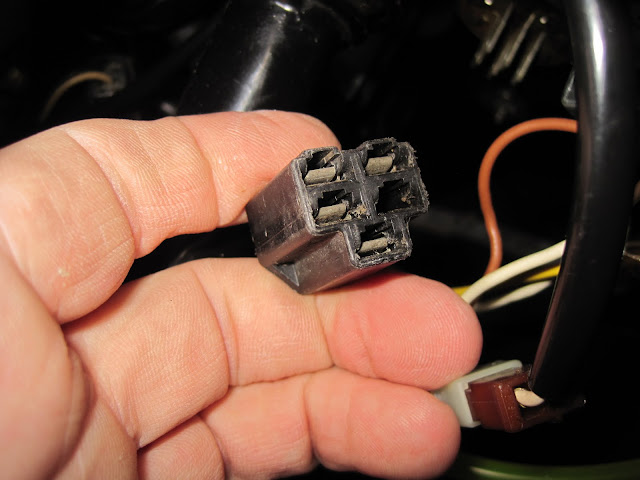

Here are some pics from the sled I am doing. Good thing I did this, I noticed the power wire had a crack in the insulation I missed. I taped it, which was no small task in those tight quarters. I tried to take all sides of the connector so you could see wire colors. I think this harness actually came out of a 79 Sting or 80 Whip. I don't really remember which. I "think" there are a few differences on the 75 and 76 Whips, so you'll need to know your year. I have an NOS switch, but I don't know about the connector. I don't think I have any parts harnesses around. I'd recommend finding the connector so nothing gets shorted out. I can't find my manual that has the wiring diagram in it either. And I need it to wire up my seat :-)
|
|
|
Post by scorp11 on Nov 30, 2012 2:23:30 GMT -5
|
|
wolfman
L1 Scorpion - The Great Snowmobile
Posts: 4
|
Post by wolfman on Nov 30, 2012 10:16:19 GMT -5
Thank you ever so much, that is what I needed to see. I would like to buy the switch from you. Just tell me how much you want for it and shipping and I will send it asap. You can call me if would like to. 720-201-4979 Jack
|
|
|
Post by scorp11 on Dec 5, 2012 2:29:48 GMT -5
Thank you ever so much, that is what I needed to see. I would like to buy the switch from you. Just tell me how much you want for it and shipping and I will send it asap. You can call me if would like to. 720-201-4979 Jack I will try to call you tomorrow or Thursday. I will be driving a lot both days, so I should have time to talk.
|
|
